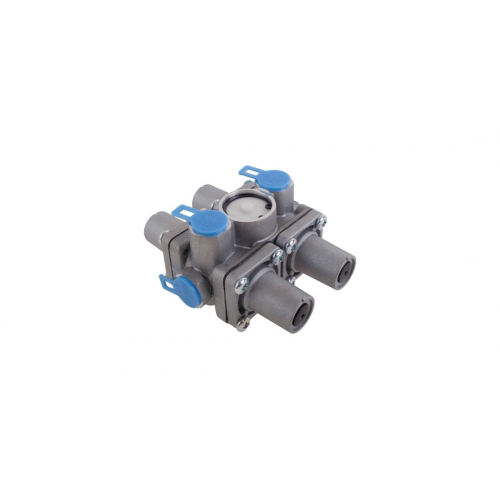

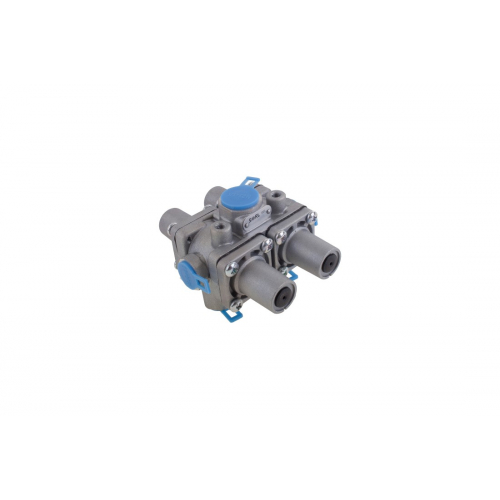

Four Circuit Protection Valve

‹ ›

Status

Active

SORL Catalog number

35150030240

Availability

9 pcs.

Cross codes:

Wabco: 9347020400 , 9347020407

Renault: 0000719762 , 5000587468 , 719762

MERCEDES: 0014311306 , 0014312006 , 0014315806 , 0014315906 , A0014311306

Scania: 1935489

Volvo: 1130617 , 1593150 , 203504870 , 4871098 , SA203504870

MAN: 81521516005 , 81521516009 , 81521516024 , 82521516000

Iveco: 02516914 , 02516965 , 02520184 , 61577721

DAF: 0112227 , 112227

NEOPLAN: 110251100

Make an inquiry

Characteristics of Four Circuit Protection Valve

Width 16

Weight 44927

Thread Port 2 M16x1.5

Thread Port 12 M16x1.5

Thread step port 11 M16x1.5

Thread step port 1 M22x1.5

GR_WEIGTH 41640

HEIGHT 13

DEPTH 10

VOLUME 0.00208

Opening pressure 1 circuit 6

Opening pressure 2 circuit 6

Opening pressure 3 circuit 5.5

Opening pressure 4 circuit 5.5
